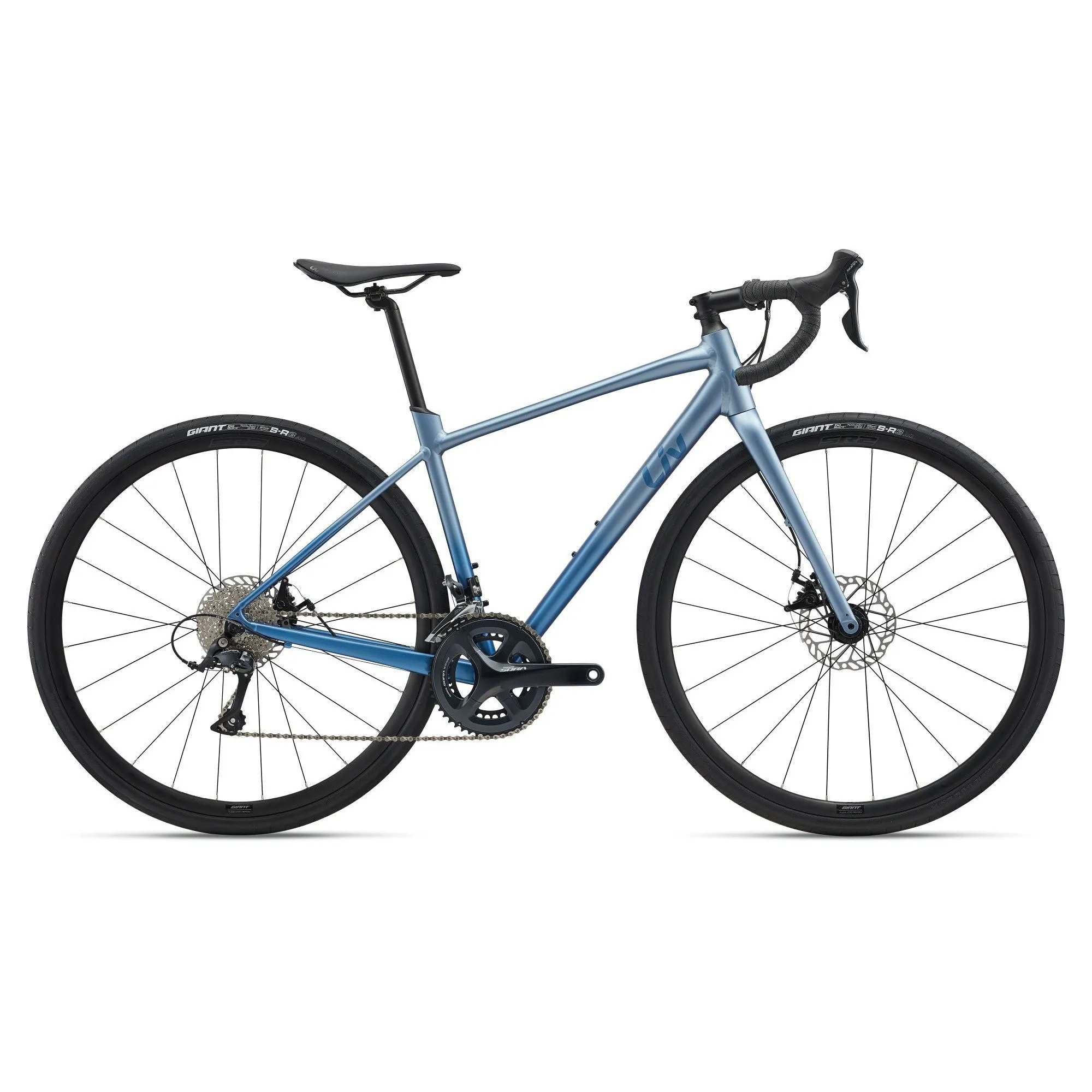

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
| Sizes | XS, S, M, L |
| Colors | Frost Silver |
| Frame | ALUXX-Grade aluminium, 12x142mm thru-axle, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm |
| Stem | Giant Sport XS:70mm, S:80mm, M:90mm, L:90mm |
| Seatpost | Giant D-Fuse, alloy |
| Saddle | Liv Approach |
| Shifters | Shimano Sora |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora |
| Brakes | Tektro MD-C550 mechanical, Giant MPH Rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Sora |
| Cassette | Shimano CS-HG400 9-speed, 11x34 |
| Chain | KMC X9 |
| Crankset | Shimano Sora, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm |
| Bottom Bracket | Cartridge |
| Rims | Giant S-R2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Giant S-R3 AC, 700x32c |
| Extras | 38mm max tyre size |
